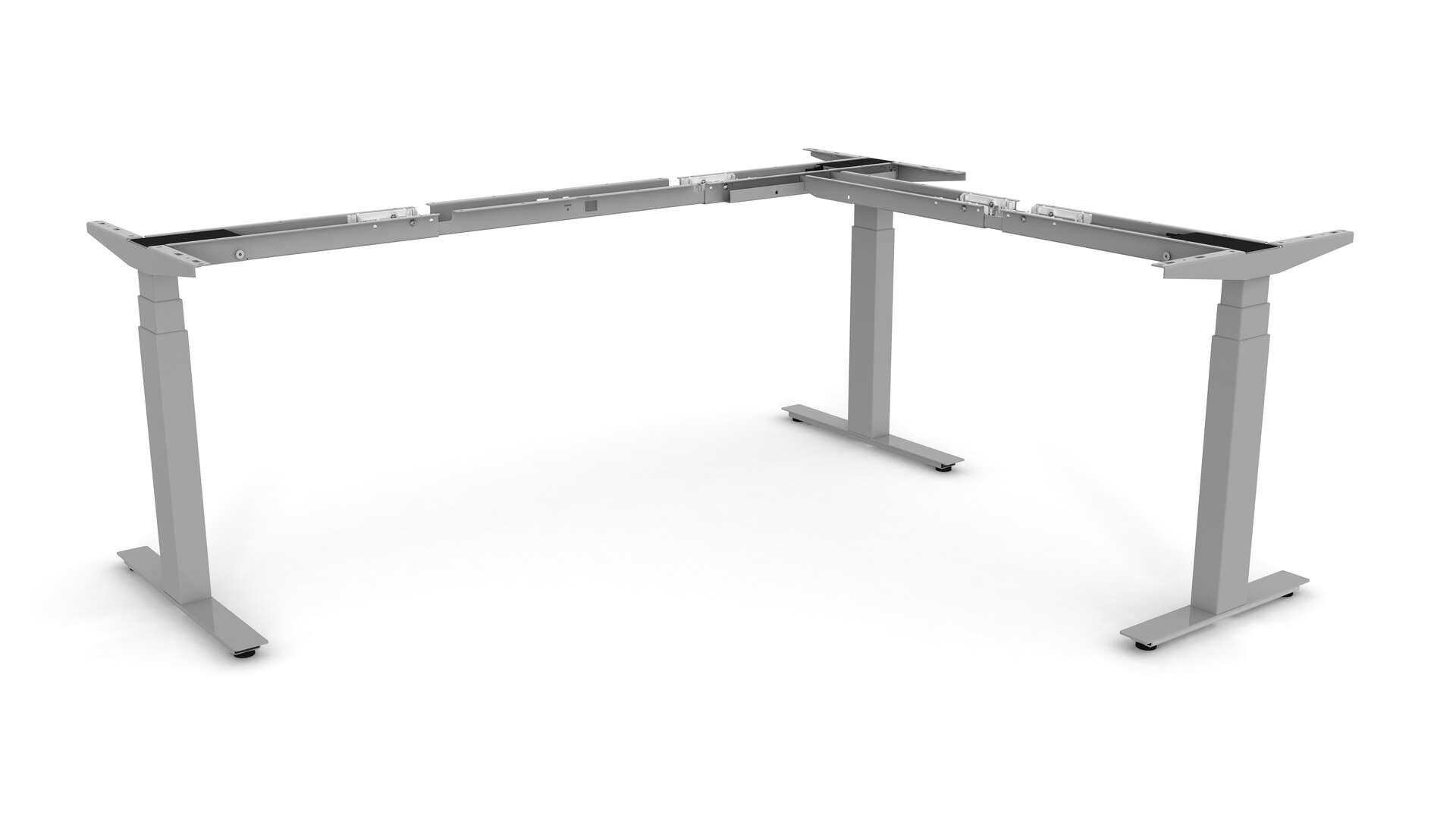

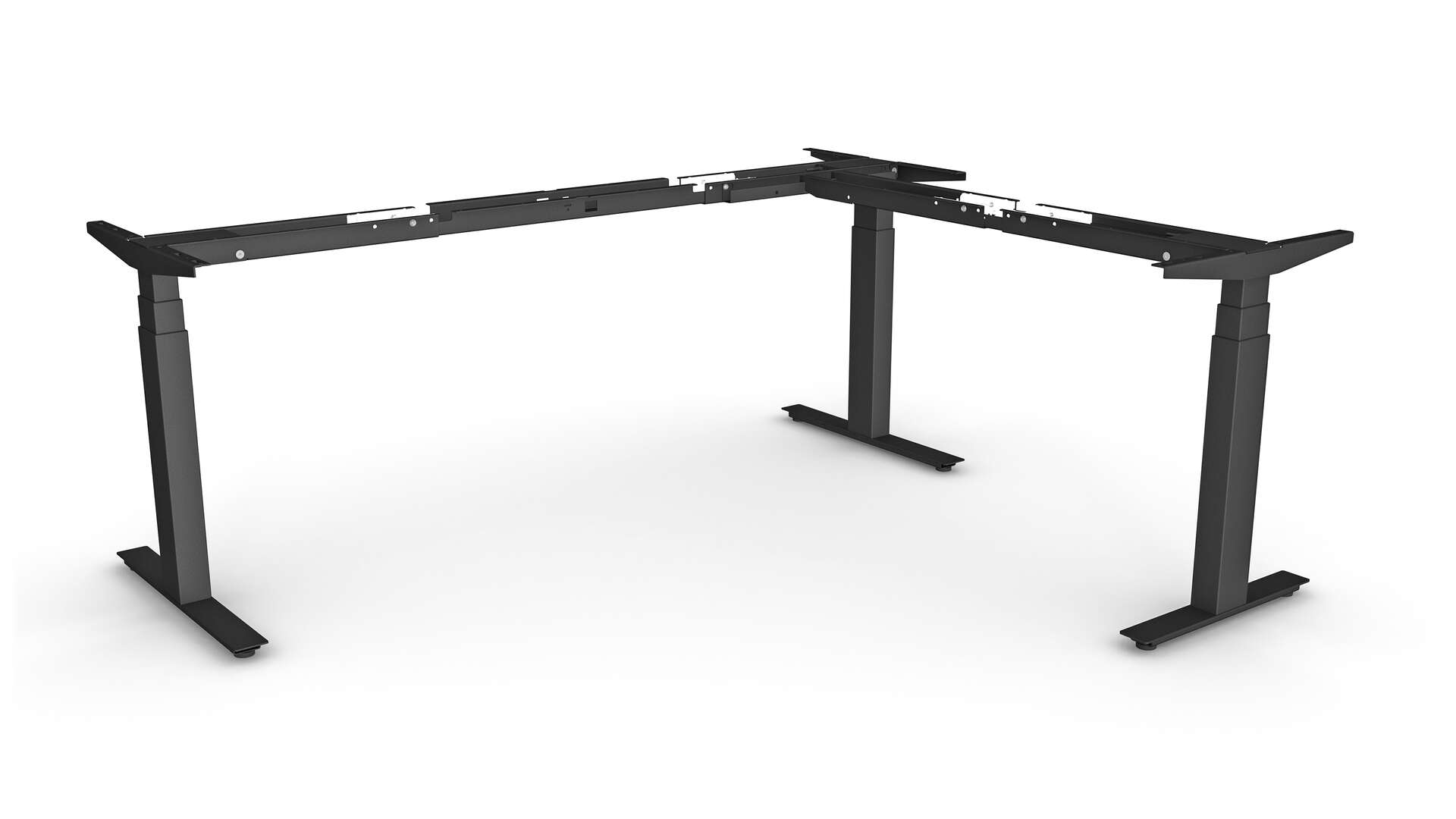

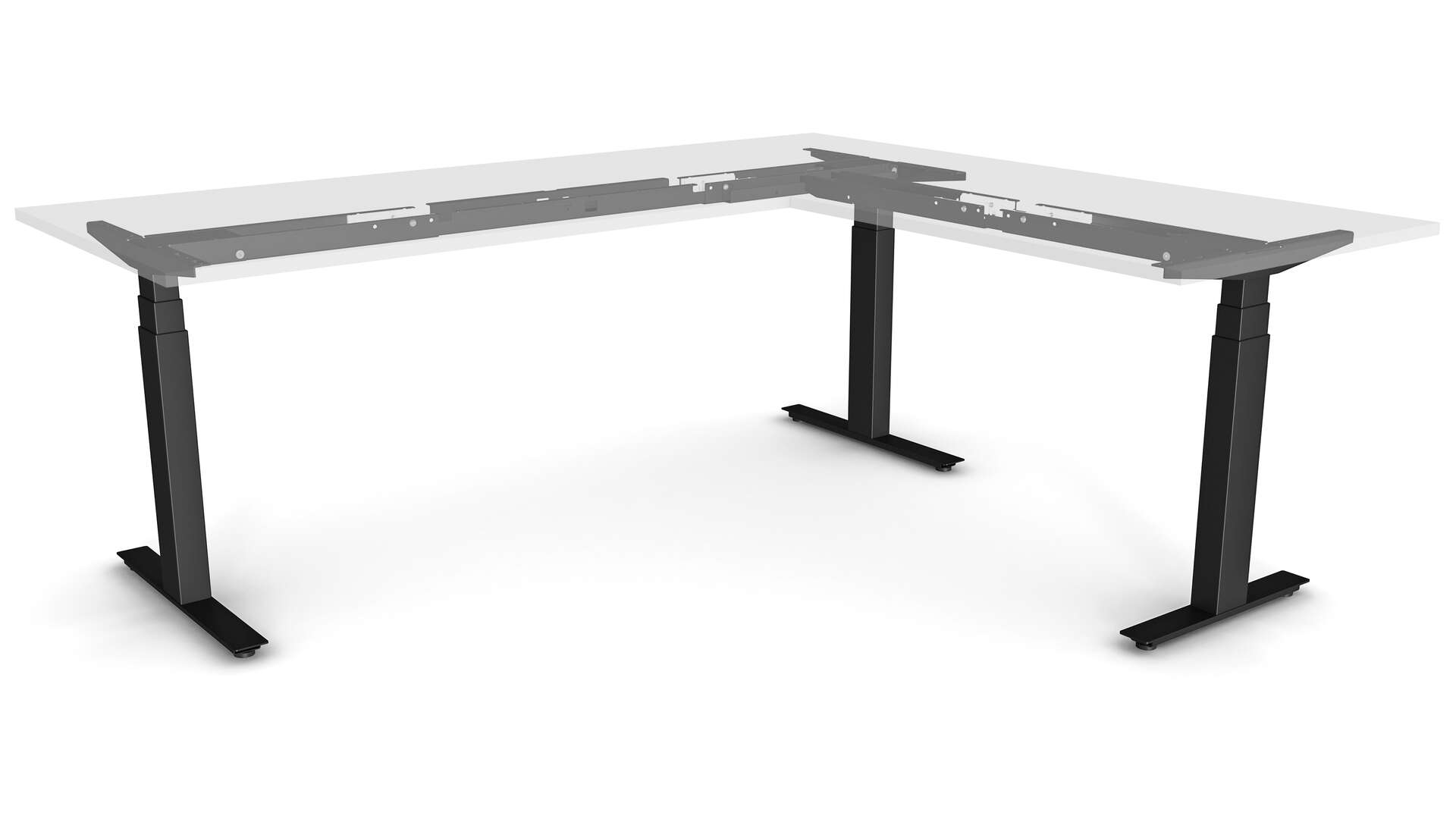

CLASSIC 2.0 FLEX-2022 3-column

Art. no: C31B1213115Axx

CLASSIC 2.0 FLEX-2022 3-column

Art. no: C31B1213115A40x

New generation CLASSIC desk frame. Sit & Stand frame with electric motor for an angled desktop. Stable design with continuous height adjustment control for ergonomic working positions.

Contact us

CLASSIC angled electric Sit & Stand frame, with continuous height adjustment control, makes it easy for the user to create an ergonomic work environment. Robust and flexible design that can be adjusted lengthways ensures a reliable desk that is easily adapted to the desktop of your choice. Free-standing legs mean optimum freedom of movement thanks to unrestricted leg room. Elegant legs of rectangular design with the big leg at the bottom. Based on the latest technology in height adjustment control to ensure reliable and comfortable operation.

  • Flexible height
  • Ergonomic

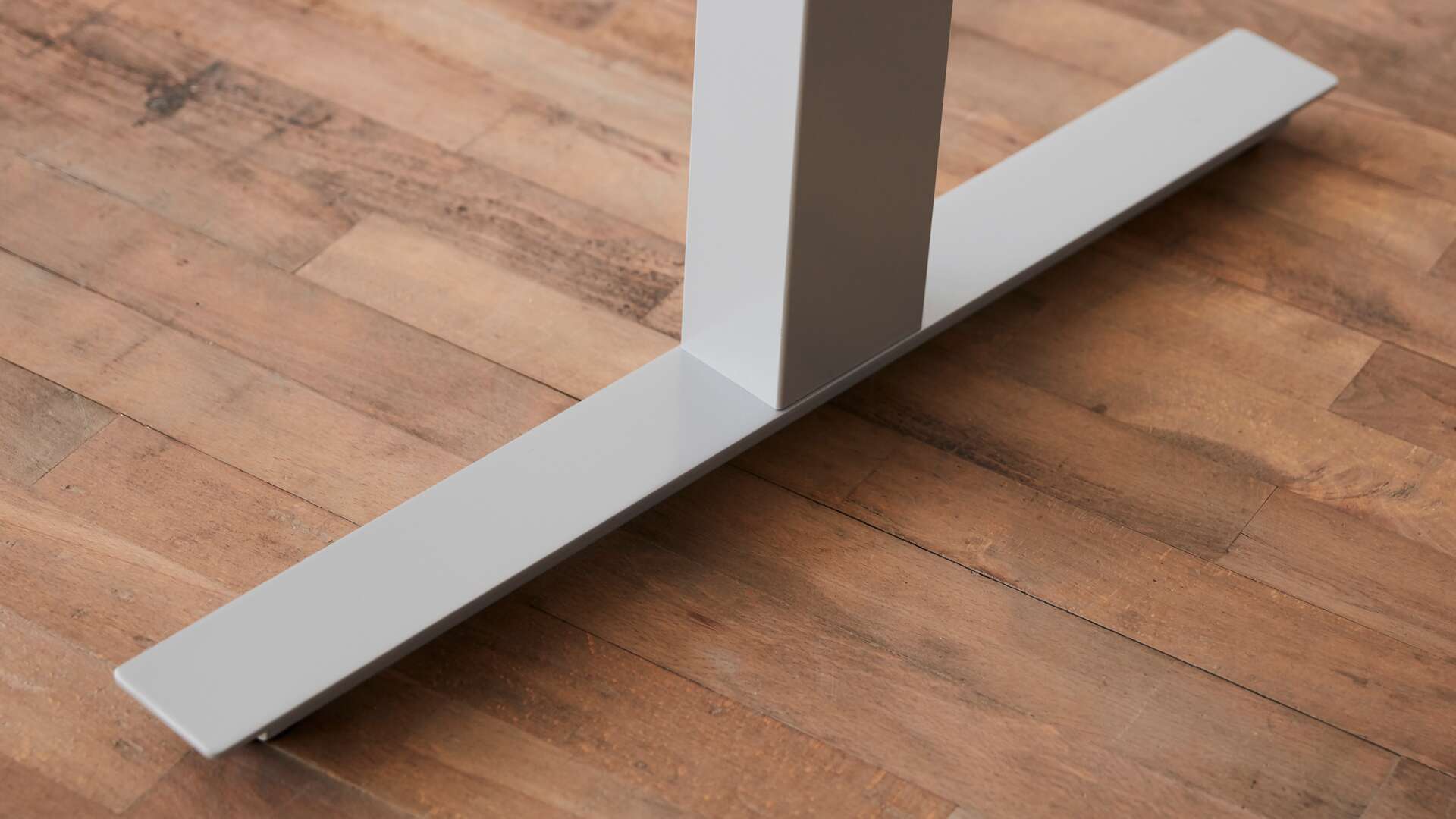

  • Elegant legs of rectangular design

Tailored solution?

Do your specific requirements mean this product needs special customisation? We are here to help you decide on which solution will suit you best. Contact us on phone: +46 (0)393-363 60 or mail info@swedstyle.se

Specifications

Adjustable height
Yes
Powered by
Electricity
Frame width
1740 mm - 2150 mm
Length of side frame
1555 mm - 2145 mm
Stroke
660 mm (615 - 1275 mm ±5 mm)
Lift capacity
Max 150 kg
Speed
40 mm/sec
Standby power
0,1 W
Noise level
< 42 dBa
Dimensions tabletops
1750 - 2650 mm x 700 - 1100 mm
1560 - 2400 mm x 600 - 1100 mm
Certifications
Fulfill Machine directive 2006/42/EC
EMC directive 2014/30/EU
Low voltage directive 2014/35/EC
REACH, WEEE and RoHS 3 2015/863
EN 527-1:2011 Type A, EN 527-2:2016
ISO 21016
UL 962 ETL listed
Duty cycle
10%, 1 min/9 min pause. Max 2 min/18 min
Installation height down position
615 mm
Max bending torque column
Max 200 Nm
Paintwork
Powder coating
Area of use
Indoor environment
Control unit performance
Low inbuilt height dimensions
Switching technology without any magnetic fields
Inbuilt overload protection
Inbuilt temperature protection
Lifetime
Min 10 000 cycles
Ambient temperature
+5° to +30° C
Humidity non condensed
5 - 85% non condensed
