Revolution T-1M

Art. no: 5193XX

Revolution T-1M

Art. no: 519308

Now we are launching the market’s lightest and most material-efficient height adjustable desks. Our new product range is called ”Revolution”. The series consists of models Y and T where the shape of the legs has given the frame its name.

Stand sections
2D
Contact us

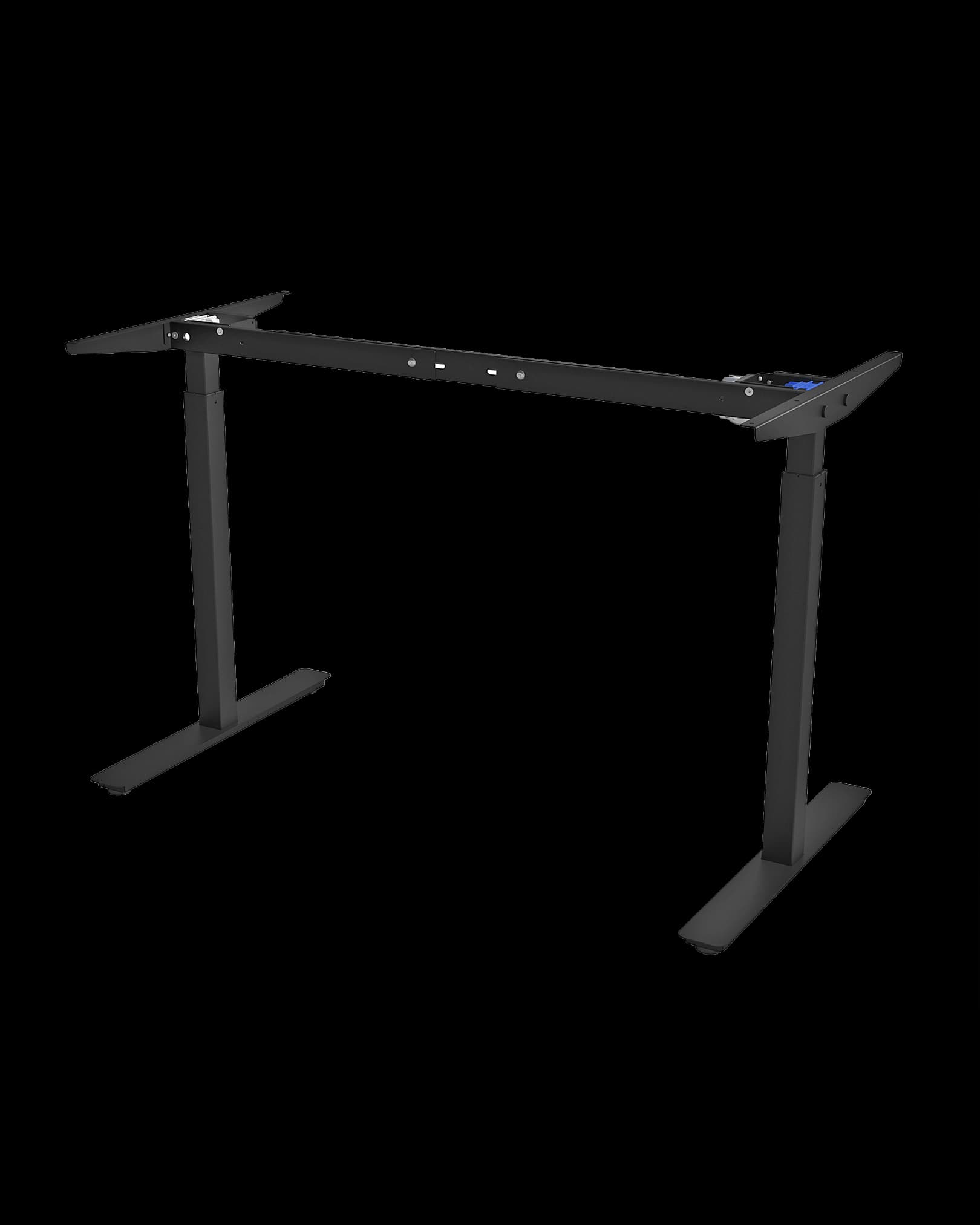

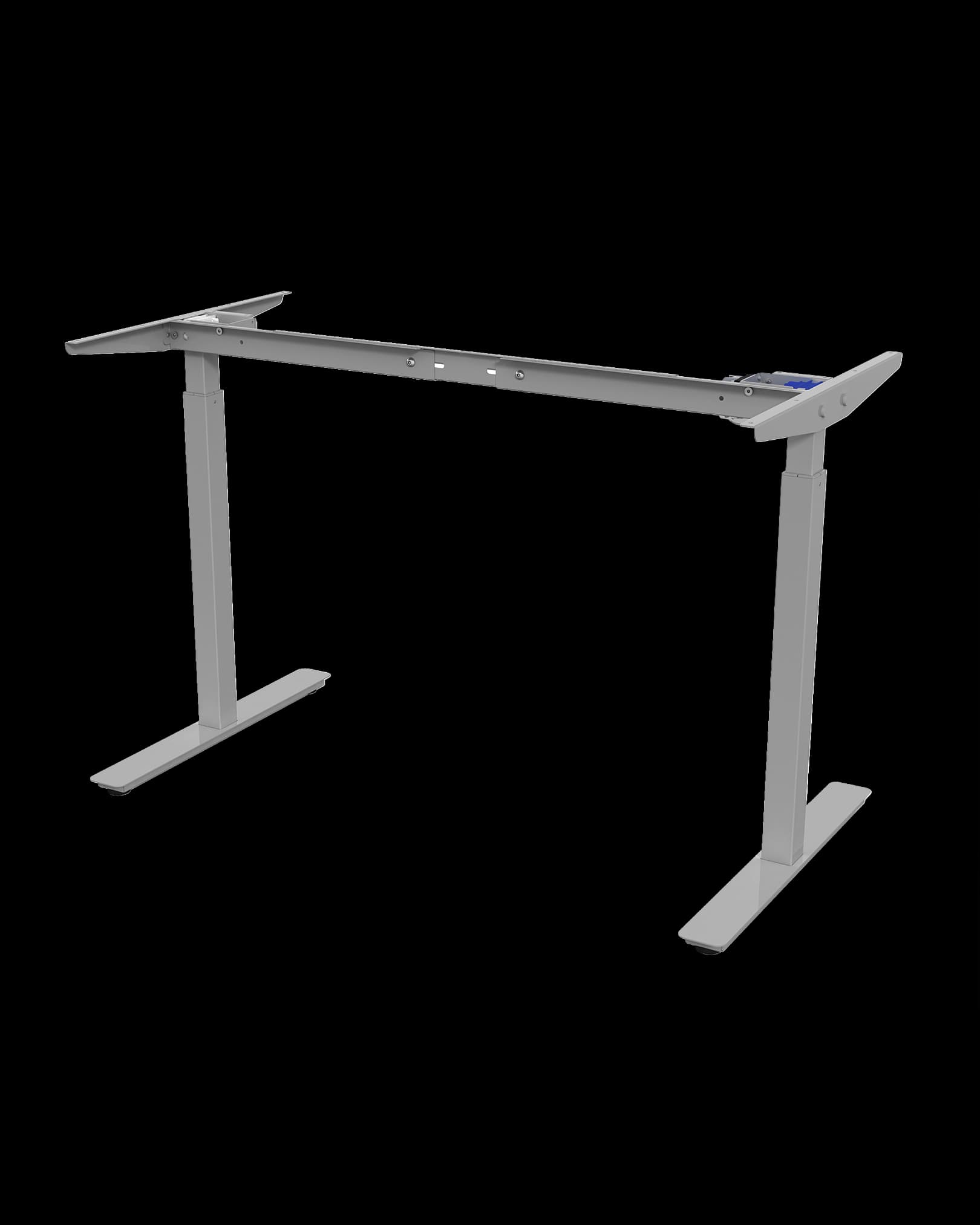

Revolution T is a neat height adjustable desk which makes it possible to create flexible and ergonomic workplaces. Several different choices of products depending on whether you want the desk to be powered by electricity or gas. The size of the desk is large enough to fit a laptop, a notepad, a computer mouse and a table lamp. Everything you need for a good working environment. The electric desk has the possibility of an even larger work surface by increasing the width of the adjustable frame.

  • Height-adjustable
  • Ergonomic

Tailored solution?

Do your specific requirements mean this product needs special customisation? We are here to help you decide on which solution will suit you best. Contact us on +46 (0)393-363 60.

Specifications

Adjustable height
Yes
Powered by
Electricity (1 motor)
Frame width
996 - 1500 mm
Stroke
470 mm (660 mm - 1130 mm ± 5 mm)
Lift capacity
Max 65 kg
Speed
25 mm/sec
Standby power
0,1 W
Noise level
< 42 dBa
Dimensions tabletops
1000 - 1600 x 800 mm (WxD)
Certifications
EN 527-2
Duty cycle
10%, 1 min 9 min pause
Installation height down position
680 mm
Paintwork
Smooth varnish
Area of use
Indoor
Lifetime
Min 5000 cycles
Telescopic column dimension
40 x 40 mm
48 x 48 mm
Weight
14 kg
Ambient temperature
+5° to +30 °c
Humidity non condensed
5 – 85 % without condensation
