Revolution Y-2M

Art. no: 5190XX

Revolution Y-2M

Art. no: 519025

Now we are launching the market’s lightest and most material-efficient height adjustable desks. Our new product range is called ”Revolution”. The series consists of models Y and T where the shape of the legs has given the frame its name.

Stand sections
2D
Contact us

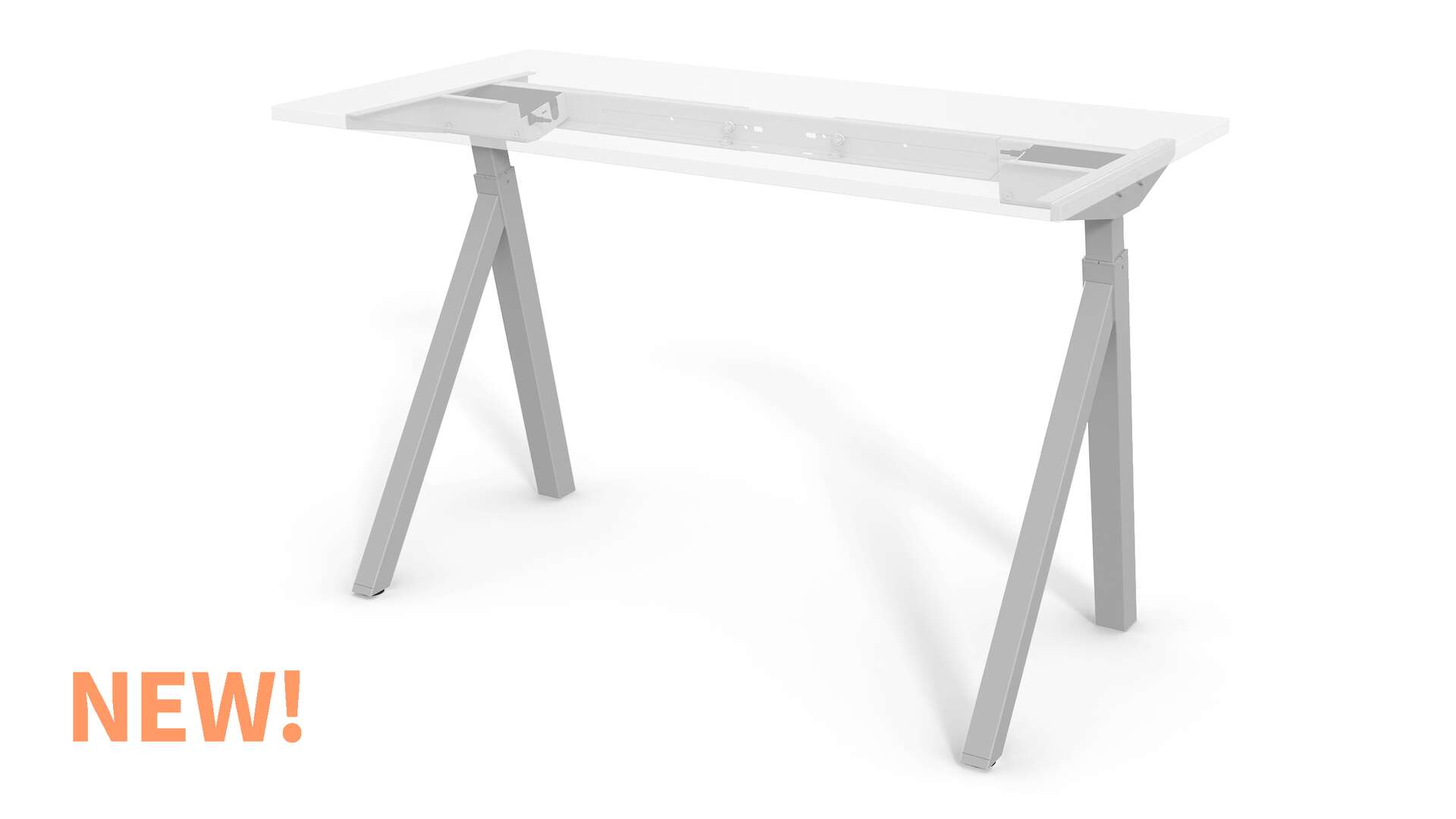

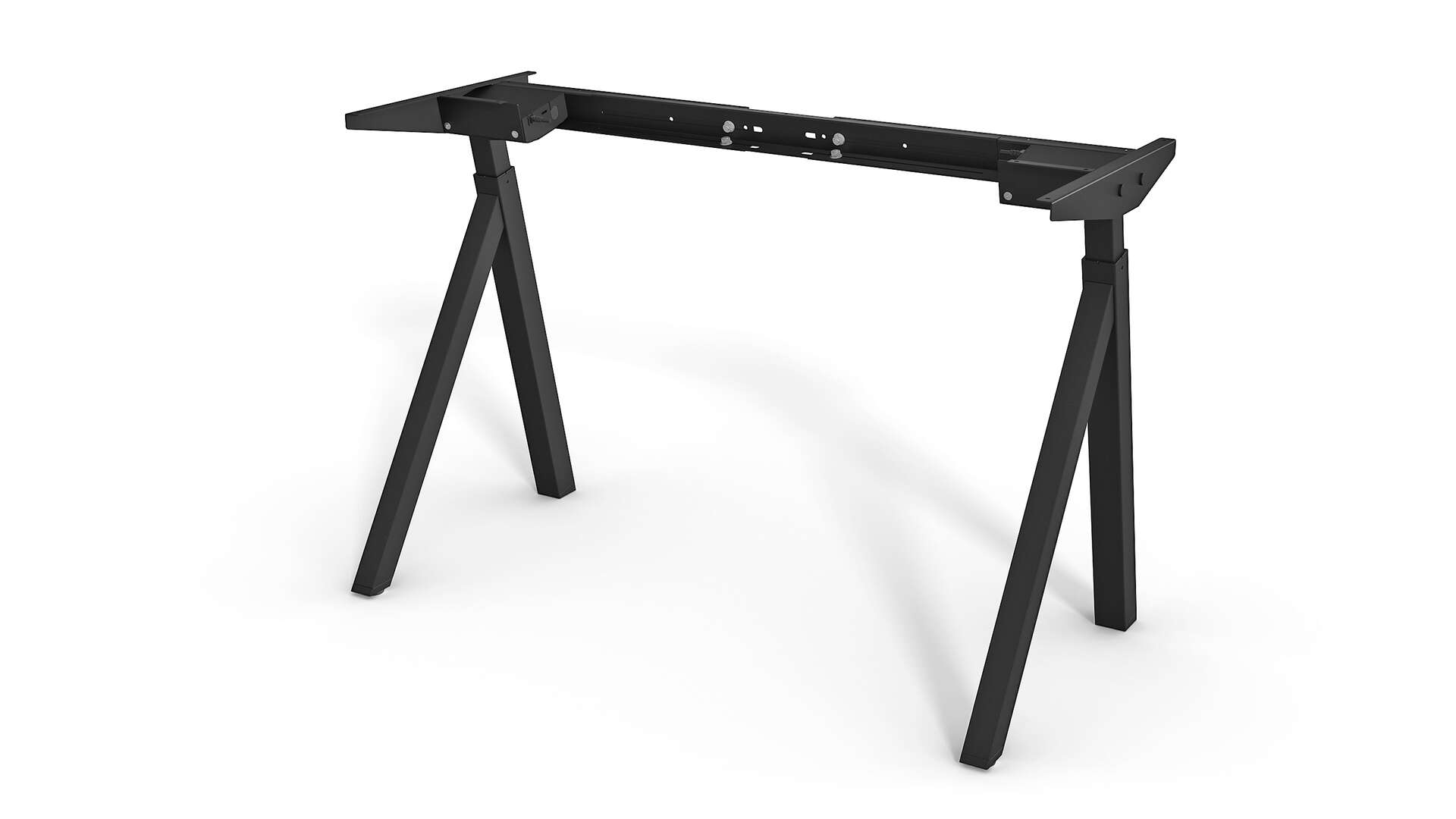

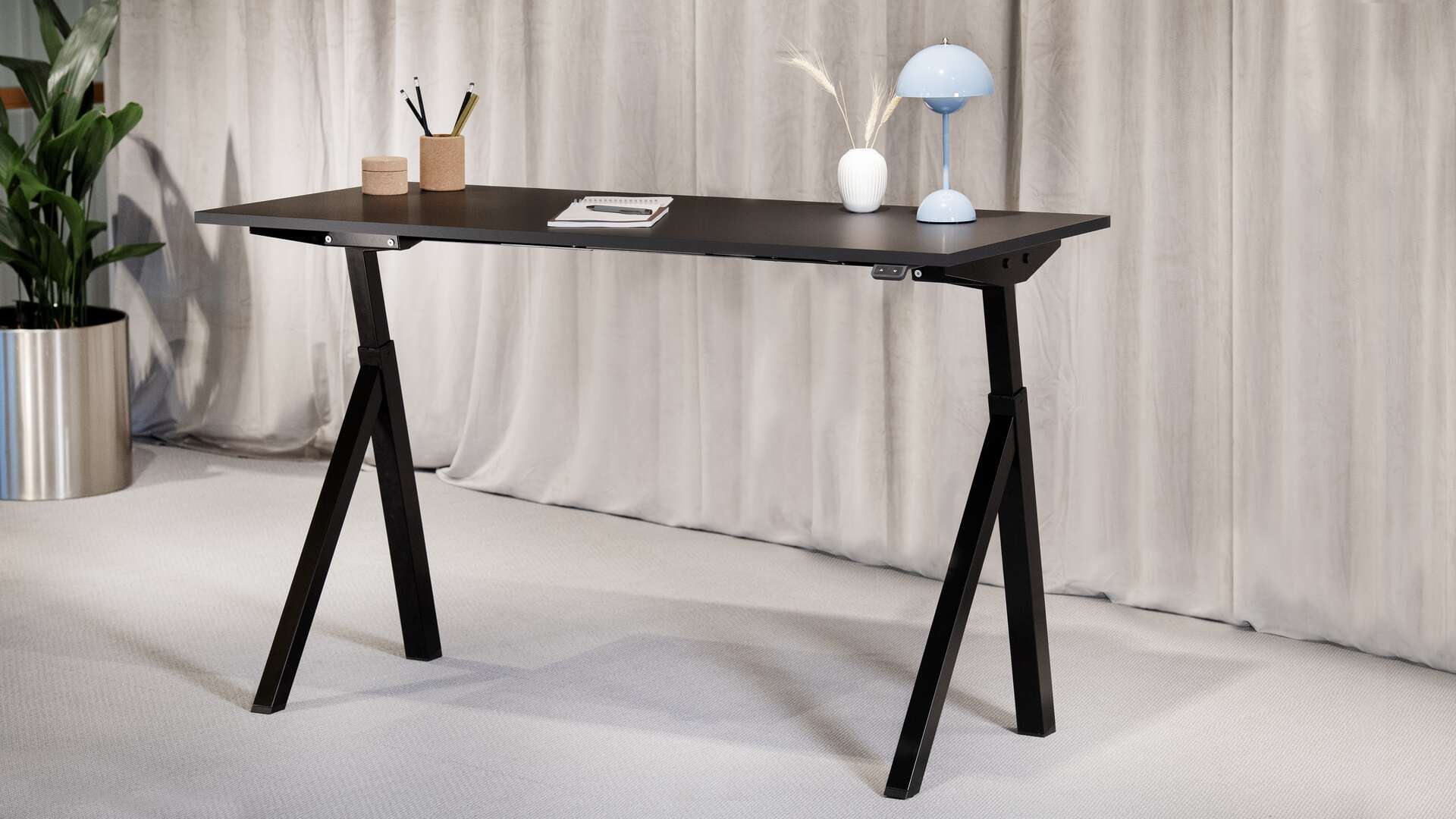

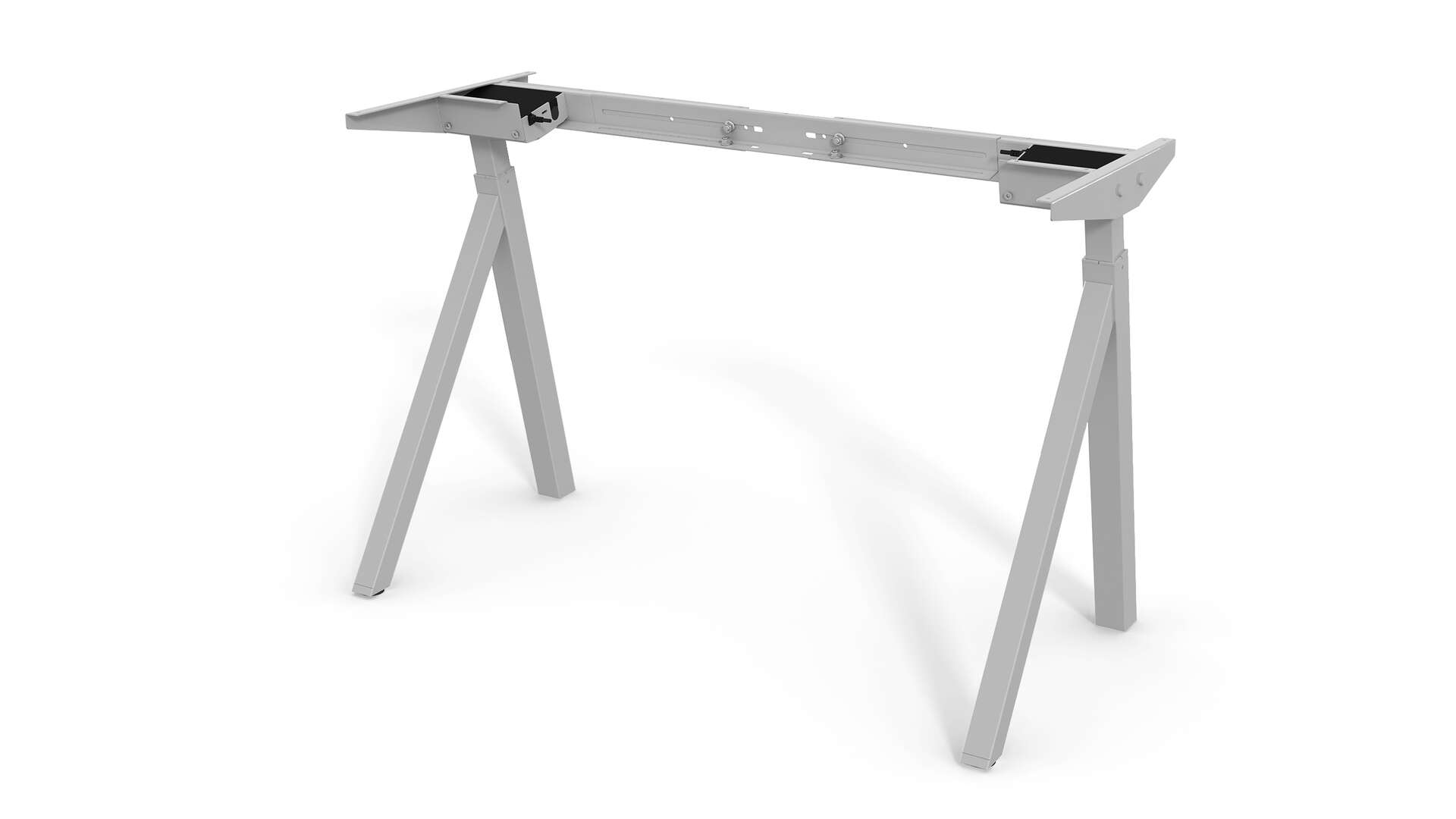

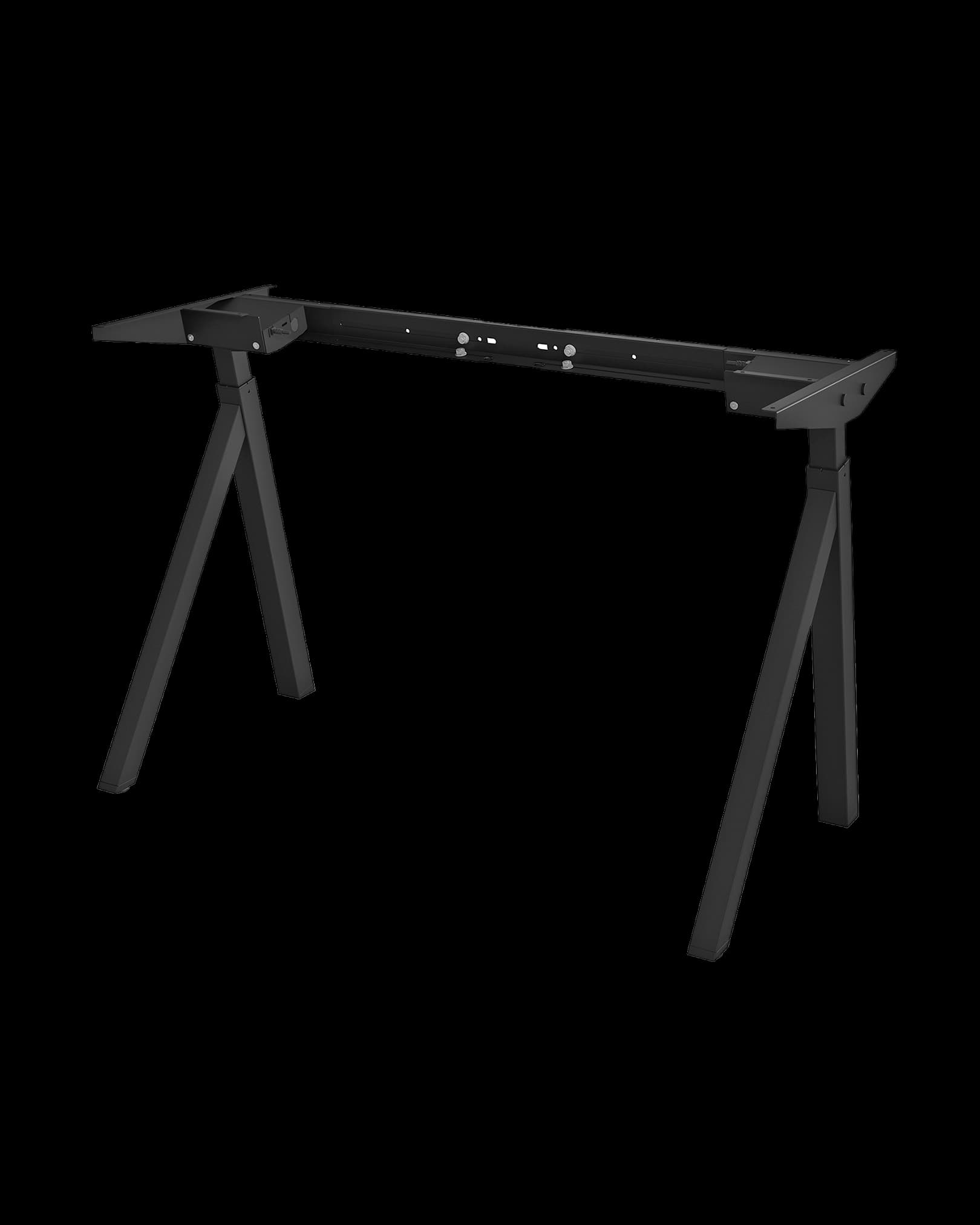

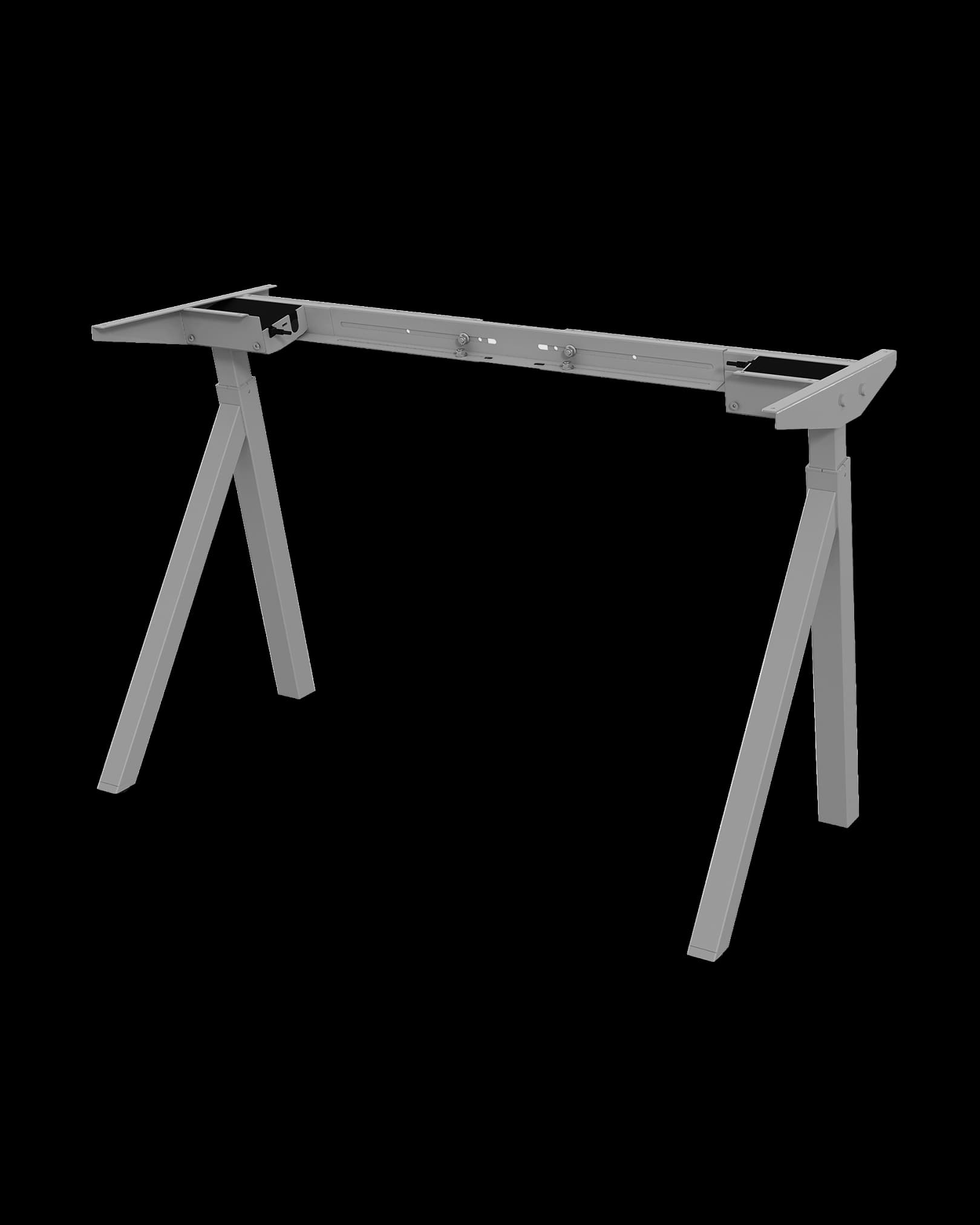

Revolution Y-2M is a light and flexible electric height adjustable desk, which provides a pleasant and ergonomic work. The desk can be placed both in the environment at home or in the small office. A stylish frame with the y-shaped legs that gives the desk a characteristic design. Revolution Y is also available as a gas-powered frame independent of power supply. To suit all your needs.

  • Height-adjustable
  • Ergonomic

Tailored solution?

Do your specific requirements mean this product needs special customisation? We are here to help you decide on which solution will suit you best. Contact us on +46 (0)393-363 60.

Specifications

Adjustable height
Yes
Powered by
Electricity (2 motors)
Frame width
998 - 1558 mm
Stroke
459 mm (675 mm - 1134 mm ± 5 mm)
Lift capacity
Max 65 kg
Speed
30 mm/sec
Standby power
0,1 W
Noise level
< 42 dBa
Dimensions tabletops
1000 - 1600 x 600 mm (WxD)
Certifications
EN 527-2
Duty cycle
10%, 1 min 9 min pause
Installation height down position
678 mm
Paintwork
Smooth varnish
Area of use
Indoor
Lifetime
Min 5000 cycles
Weight
15 kg
Ambient temperature
+5° to +30 °c
Humidity non condensed
5 – 85 % without condensation
