WALL 3

Art. no: 567003xxB

WALL 3

Art. no: 56700314B

Electric sit & stand frame for mounting in wall or gable. Continuous height adjustment control for ergonomic working positions.

Contact us

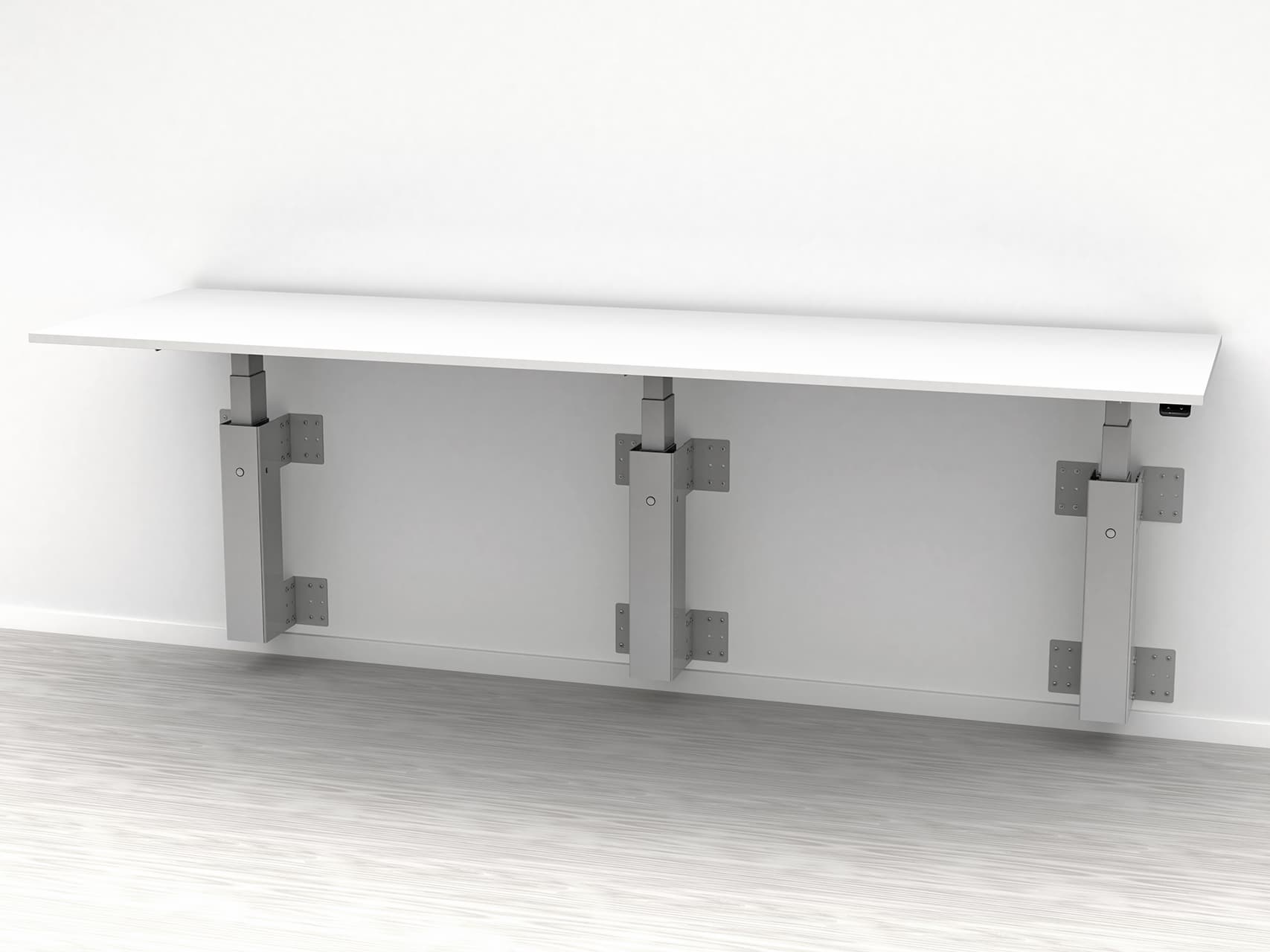

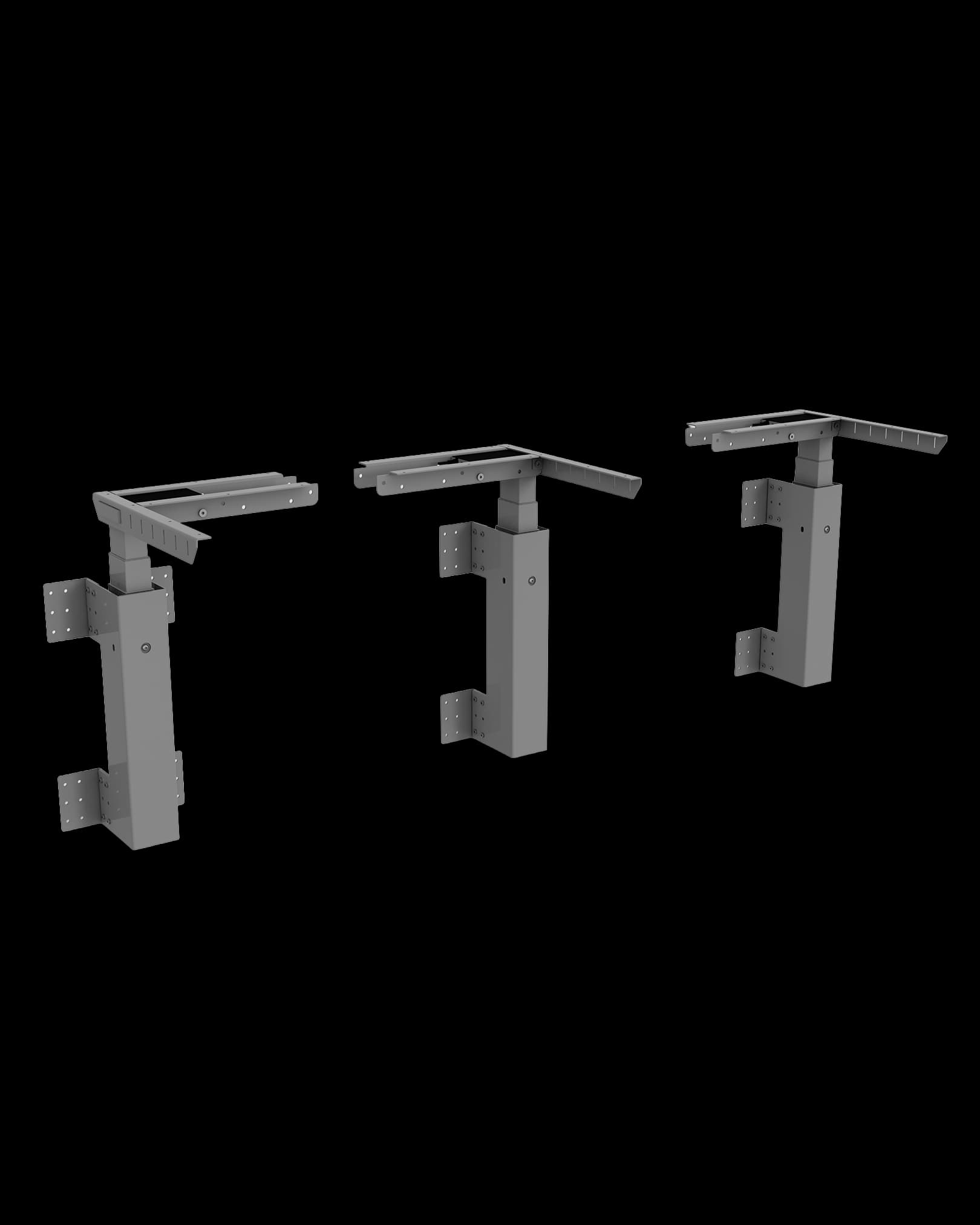

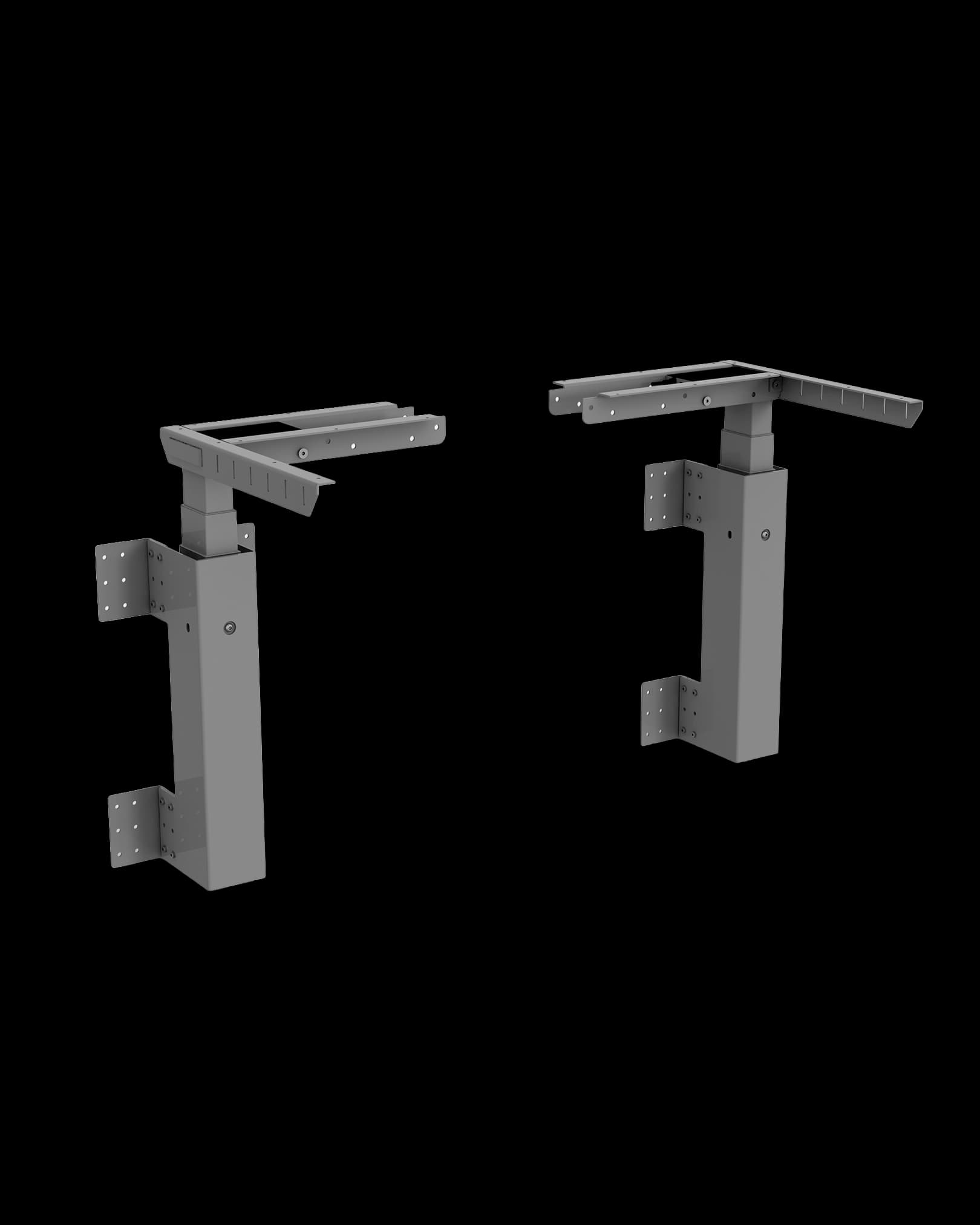

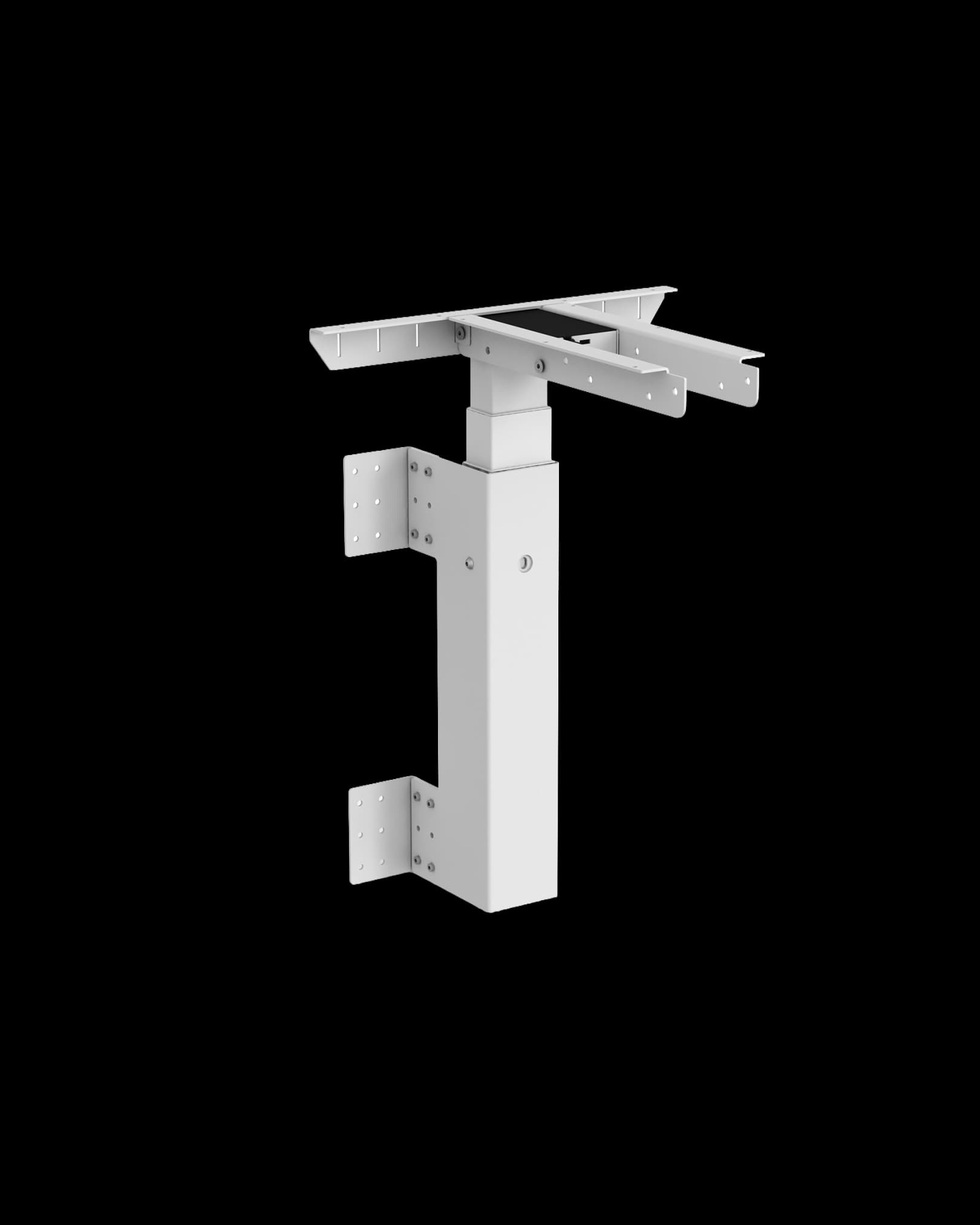

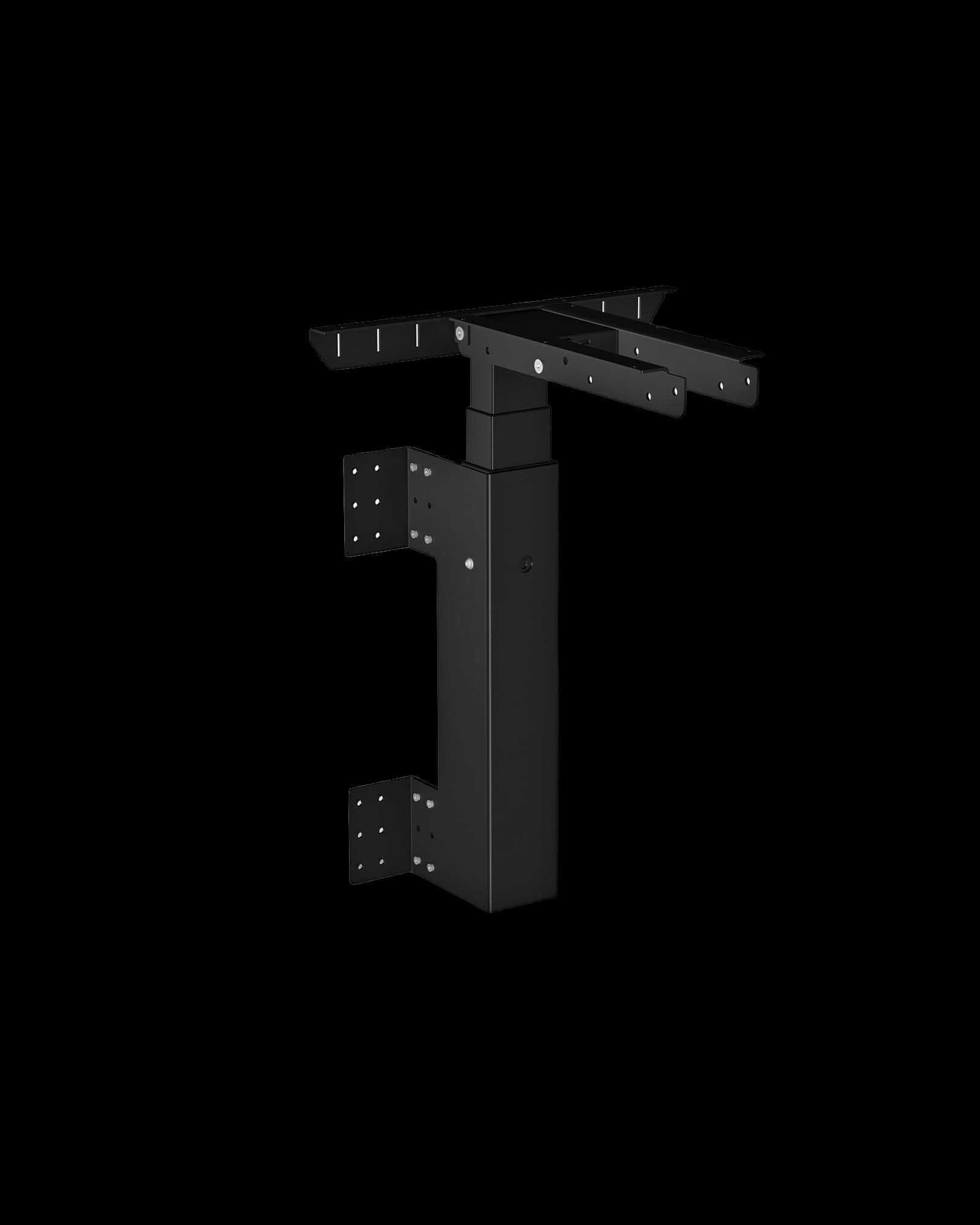

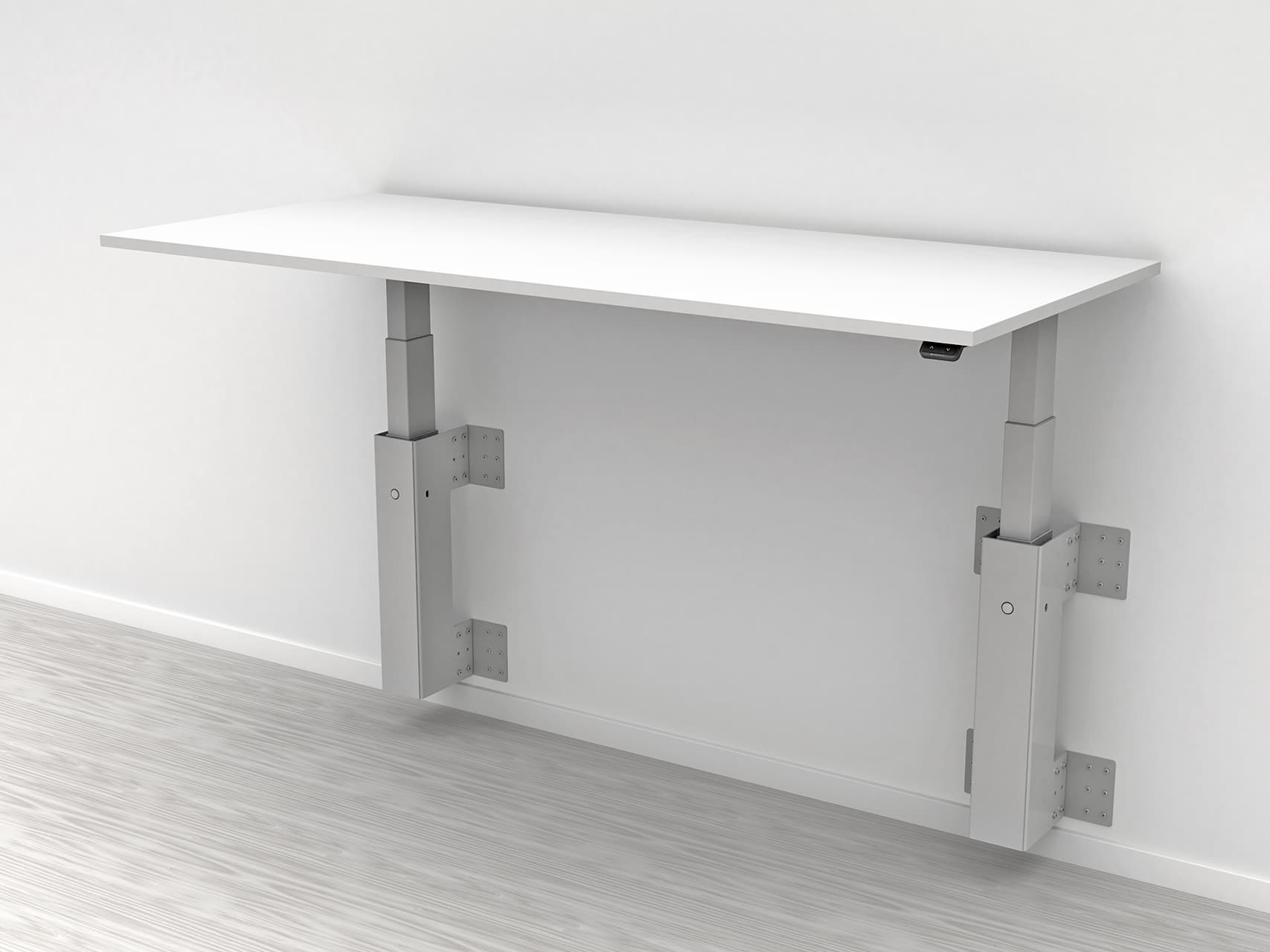

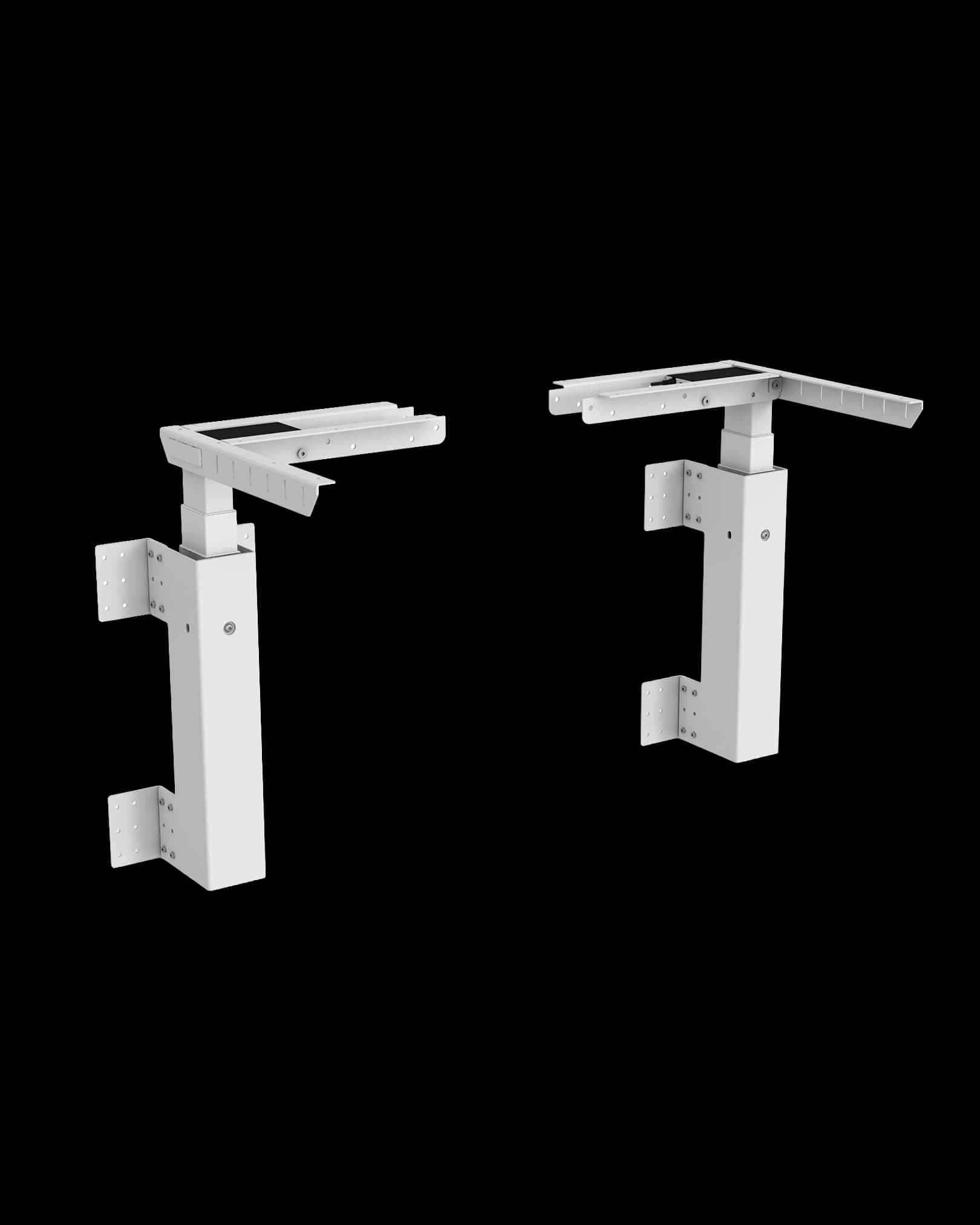

Robust and flexible design that can be adjusted lengthways ensures a reliable desk that is easily adapted to the desktop of your choice. Elegant legs of rectangular design with the large tube at the bottom. Based on the latest technology in height adjustment control to ensure reliable and comfortable operation. The frames are mounted at the desired height on the wall or in gable. Choose 1, 2 or 3 columns depending on the size of the table top.

  • Height-adjustable
  • Ergonomic

Tailored solution?

Do your specific requirements mean this product needs special customisation? We are here to help you decide on which solution will suit you best. Contact us on phone: +46 (0)393-363 60 or mail info@swedstyle.se

Specifications

Adjustable height
Yes
Powered by
Electricity
Frame width
Min 1291 mm
Stroke
660 mm
Lift capacity
Max 100 kg
Speed
30 mm/sec
Standby power
0,3 W
Noise level
< 42 dBa
Dimensions tabletops
1300 - 4000 x 500 - 800 mm (WxD)
Duty cycle
10%, 1 min/9 min pause. Max 2 min/18 min
Installation height down position
685 mm
Max bending torque column
Max 150 Nm
Paintwork
Powder coating
Area of use
Indoor environment
Ambient temperature: +5° to +30° C
Humidity: 5 - 85% non condensed
Control unit performance
Low inbuilt height dimensions
Switching technology without any magnetic fields
Inbuilt overload protection
Inbuilt temperature protection
Lifetime
Min 10 000 cycles
